纽约世贸大楼,美国

纽约世贸大楼,美国 / BIG

合众为一


项目标签

设计公司:BIG

位置:美国

类型:建筑

标签:纽约

分类:办公建筑 商业建筑 塔楼 摩天楼

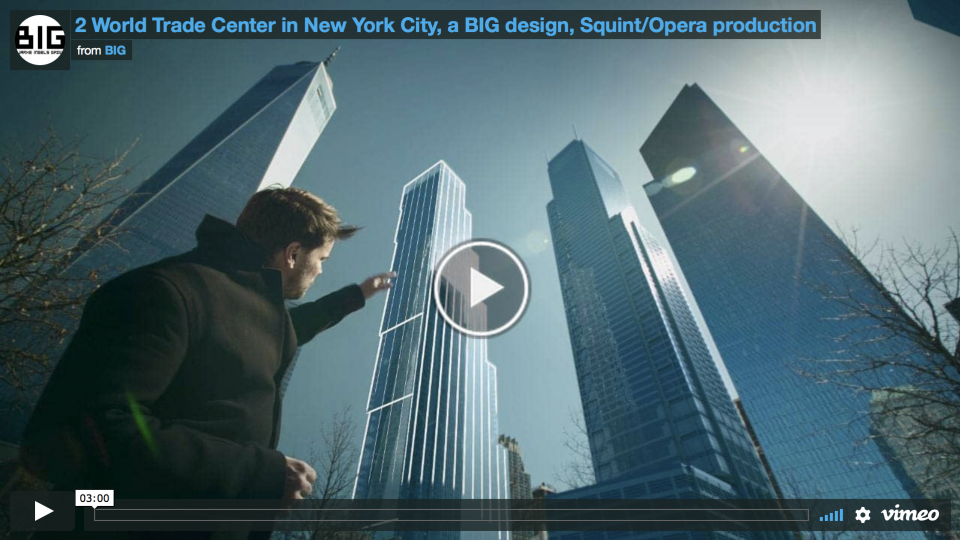

▽ 视频VIDEO截图 点此观看视频(需翻墙)

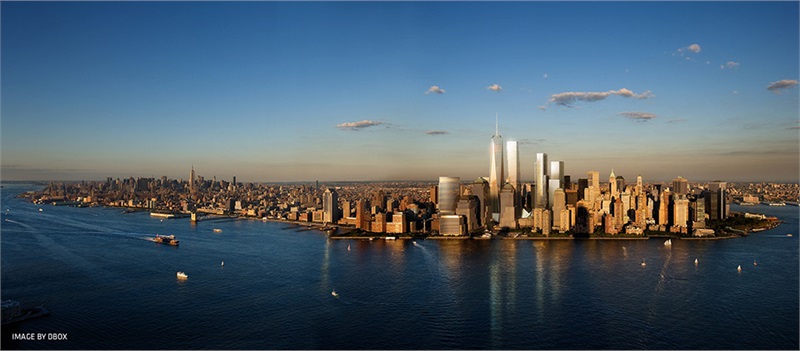

200 Greenwich Street / 2 WTC is the capstone in the redevelopment of the World Trade Center and the final component of the revitalization of Lower Manhattan.

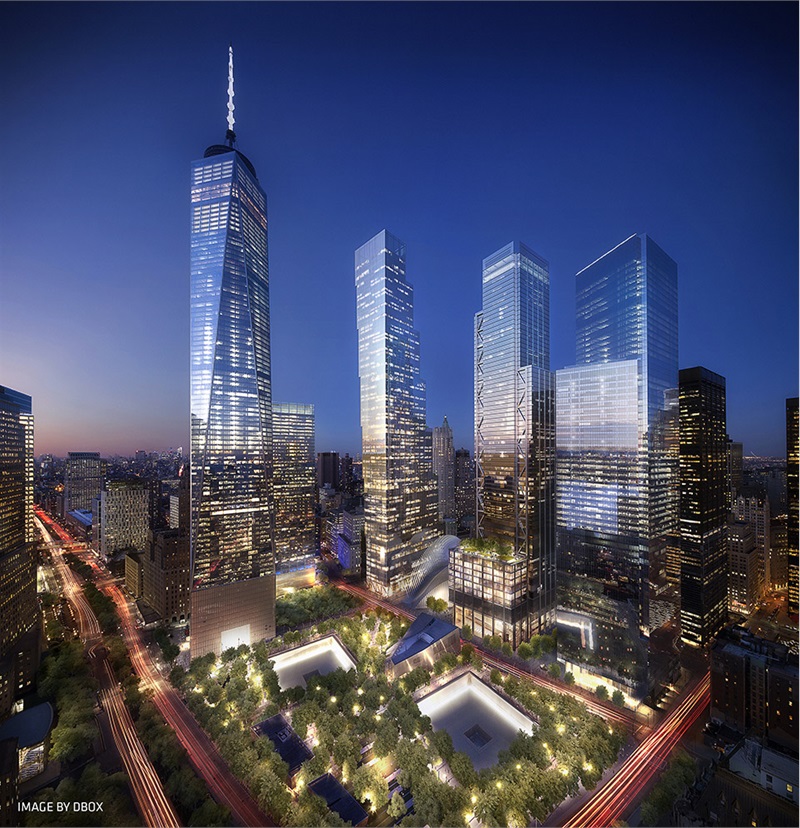

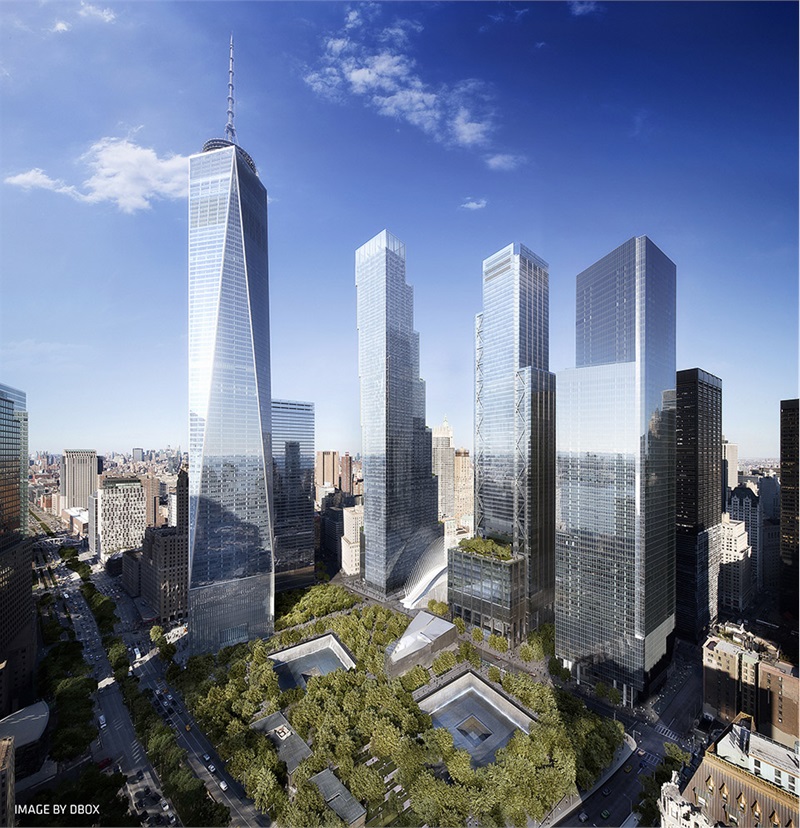

Located at 200 Greenwich Street and bounded by Church Street to the east, Vesey Street to the north and Fulton Street to the south, the tower will rise to 1,340 feet, respectfully framing the 9/11 Memorial Park alongside One WTC, 3 WTC and 4 WTC. The 80+ story building is developed by Silverstein Properties and will serve as the new headquarters for 21st Century Fox and News Corp, who will occupy the lower half of the tower, housing their subsidiary companies and more than 5,000 people under one roof.

/wp-content/uploads/2015/06/_c_NiN2Yf6nSbivn9X2tBy3hJAnPSYkKm5oFJFaYff-yQL6Ofqx8TuEeKa_dw8s2n8M-0RjpbaOcdegOej_u76U2tsXCbYaYtRw.jpg

200 Greenwich Street / 2 WTC地块是世贸重建和曼哈顿下城振兴计划的最后一个部分,BIG完成了2代世贸中心大楼的设计。这栋由Silverstein Properties主导开发的80层高达1340英尺的大楼紧邻世贸911纪念公园,大楼的下半部分将作为21世纪福克斯公司和新闻集团的新总部,住房,以及他们的附属公司办公用地。局时使用人数将超过5000。

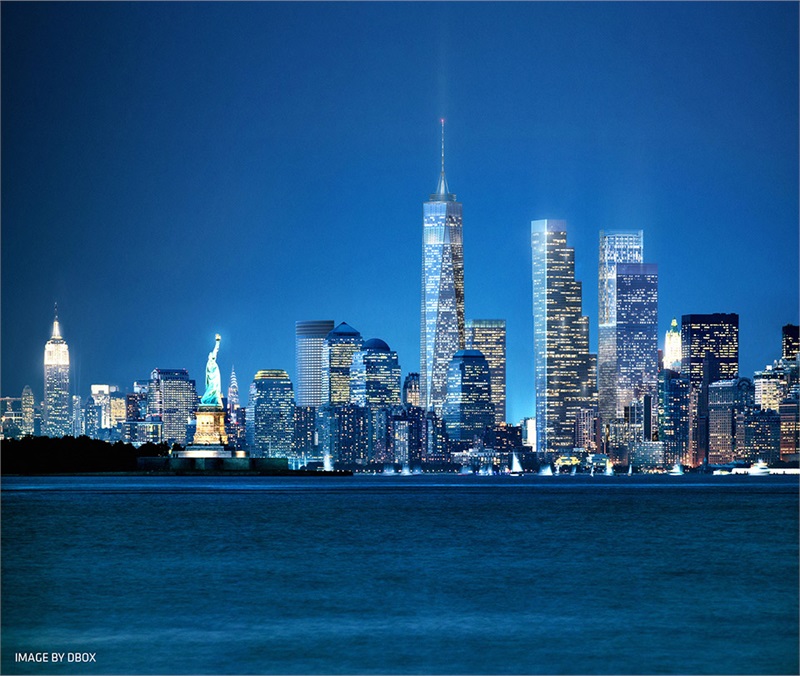

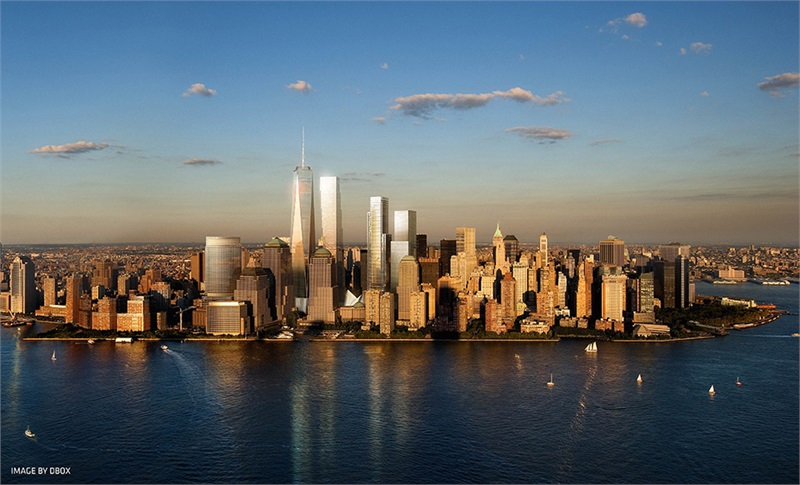

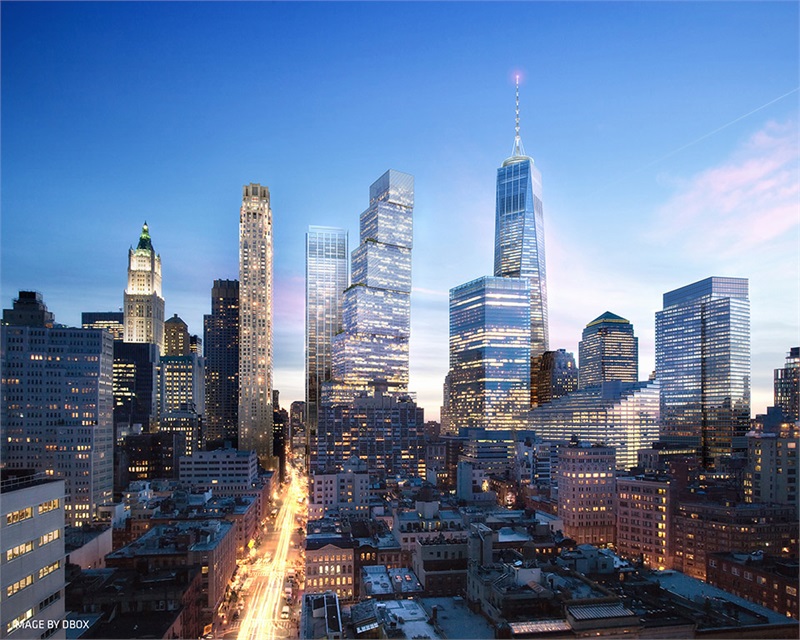

BIG的创始人Bjarke Ingels告诉gooood:“世贸中心建成后将同市中心其它大楼一起重整曼哈顿天际线。这栋大楼像是一个拥有天台花园的垂直村落,除了垂直线条还有水平线条,它是这个区域特别的纯在,但这种多样性仍与区域和谐”

Silverstein Propertie的主席Larry A. Silverstein直言不讳的称赞Bjarke Ingels具有创意让人兴奋,设计的大楼也完全符合丹尼尔·里伯斯金的世贸中心遗址总规。

/wp-content/uploads/2015/06/_c_szwUBhIpUvbsglezb2lP9aLguzjr2U7LEcehQmALylb5JOOJ7fkNqw32PsKKMZxQLwa2Ni6fUYInv1Bn4yNTcEN7Kgg_k-cI.jpg

/wp-content/uploads/2015/06/_c_Wy5ccXrHORLXw0lWdm2SJYO1OnbVrA3If4SED-bO0eR1546zI5O7u2PbkTF6mLXfEpFmGF3ky9PHKiCfH-_jMZnh9wyhQyvD.jpg

/wp-content/uploads/2015/06/_c_n4QIBXWPjyT5t6PczuoR-kxiQX92aXlEBQzVBABSB20RukEXCHWcBT2CKhgYIr6usHytHZpVFVhosN8PCxE4NUFDztRF6ygJ.jpg

“The completion of the World Trade Center will restore the majestic skyline of Manhattan and unite the streetscapes of TriBeCa with the towers downtown. To complete this urban reunification, we propose a tower that will feel equally at home in TriBeCa and the World Trade Center. From TriBeCa, the home of lofts and roof gardens, it will appear like a vertical village of singular buildings stacked on top of each other to @Create parks and plazas in the sky. From the World Trade Center, the individual towers will appear unified, completing the colonnade of towers framing the 9/11 Memorial. Horizontal meets vertical. Diversity becomes unity.” Bjarke Ingels, Founding Partner, BIG.

“Bjarke Ingels is one of the most innovative and exciting architects in the world today. His conceptual design for 2 WTC fits perfectly into the World Trade Center site, as part of Daniel Libeskind’s Master Plan, and alongside the outstanding work of D**id Childs, Richard Rogers, Fumihiko Maki and Santiago Calatr**a.

While we h**e a lot of work ahead of us, I am thrilled to partner with 21st Century Fox, News Corp and Bjarke Ingels Group in creating a new architectural icon on what will be Downtown’s fully restored skyline,” Larry A. Silverstein, Chairman, Silverstein Properties.

/wp-content/uploads/2015/06/_c_lhK28hjUkQcmgw6duBEmK1Ubg0NgJ5P3TtcTc8lTTkixZaW_gqCEUPHl3YFlmG44QMiQEdENFIU0N75Im9BkSZ3BCmHyKKPz.jpg

/wp-content/uploads/2015/06/_c_7jm-yDU7Fhlqu_qtejjf9XVy-vCVoeySTFjHGLf0iKgRRjNNzXoB01EdtFsuYOoRQRgtW5NhuWFEK6yvTVyJSovB6nKlTe9J.jpg

这栋修长的大楼高层建筑与低层建筑的气质并具,空中绿色梯田概念是其耀眼的存在。

21世纪福克斯公司和新闻集团的新总部将占据塔的下半部分,他们曾表示这栋由西尔弗斯坦地产开发,BIG设计的大楼是他们新总部的理想选址,将为他们提供一个高效灵活具有发展潜力的场所,同时也将为曼哈顿下城注入媒体媒体新活力。塔的上半部分将由西尔弗斯坦地产租赁给其他商户。

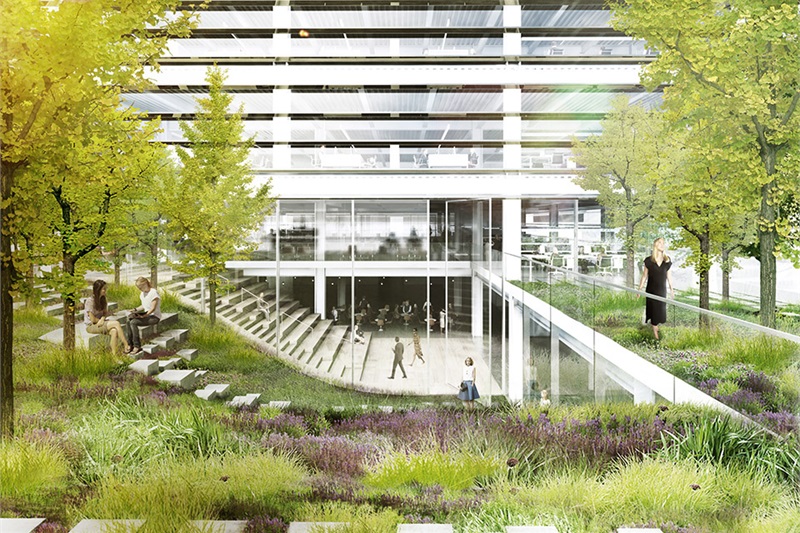

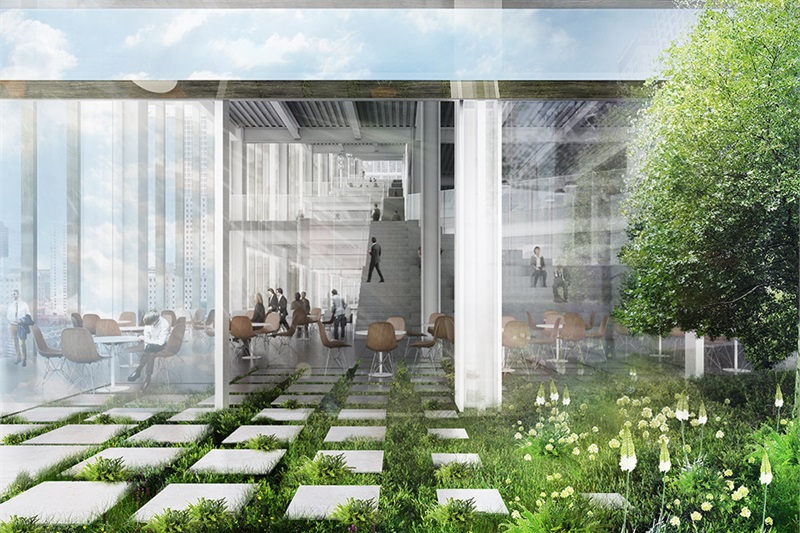

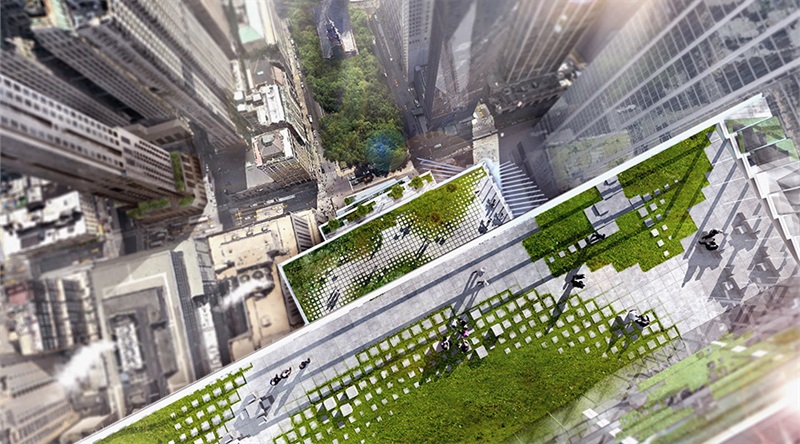

整个楼由下大上小的7个方体折叠而成,方体通过堆叠错位而形成的屋顶花园面积共达到3,530平方米,这里将种植郁郁葱葱的绿树并为人们提供前所未有的露台式城市景观。纽约的天际线因为老式摩天楼与新式摩天楼的交相辉映共同协奏而更加魅力焕发。

BIG的合伙人Thomas Christoffersen提到金融区在向媒体,技术和设计创意转变时变得更有活力,他们设计的大楼解决了现代工作空间的需求。堆叠的体块保证了每个体量下方都有一片属于自己的小公园。

/wp-content/uploads/2015/06/_c_rIknB7PMooCcaqe5wVA2xlda2Tf-SRxCP-2JRk1dypAw0fa8mpTuBA_-k8oDp-lfN2HaBJMf_OFjxwKm1CuyT_frDe94y9PR.jpg

/wp-content/uploads/2015/06/_c_P-zHcBuXPiIburyTO-qm8w_ZaD6AM46QUNwB5qwel3mxsaCJdCw79jR_kQpH3UlCoN2pZVCe7ppXT65n1JVCmHRJ5OAYBrml.jpg

/wp-content/uploads/2015/06/_c_t14aQ1RqRIGo3jlDEhG0q9VrrPnCwqP08O7-68oYMeGOGKN2-AjczGoR6I-fU_AORjqX4bsc1nrfZrt_bZVsj9gL_J6Ithpx.jpg

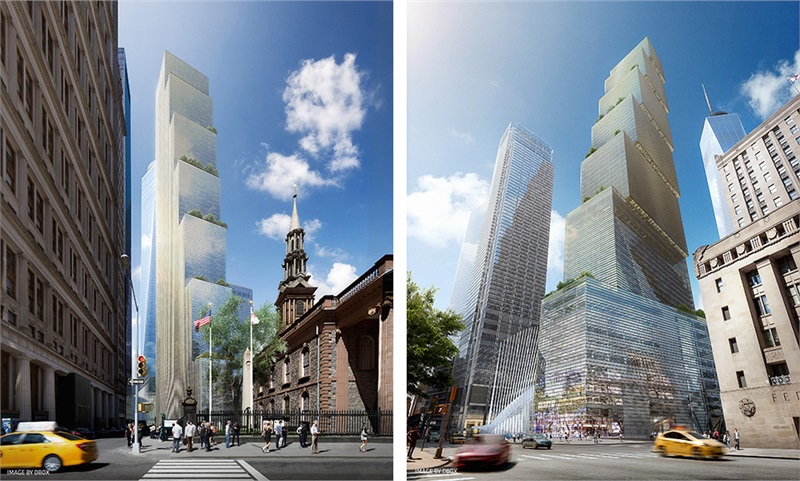

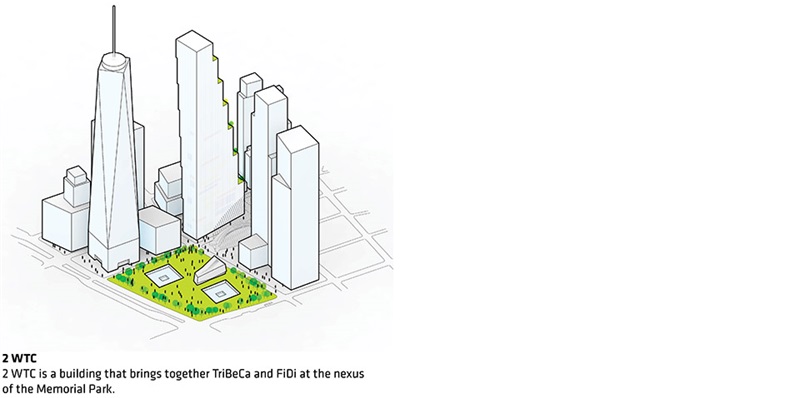

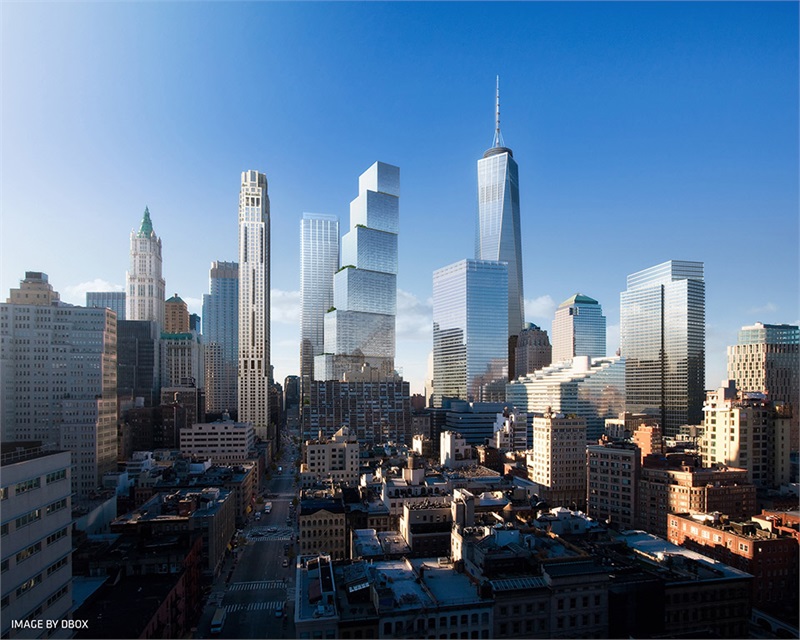

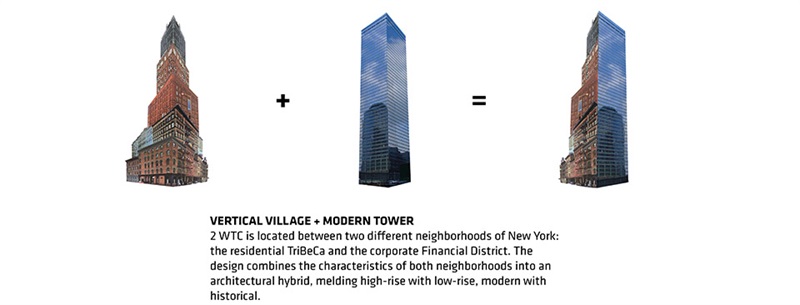

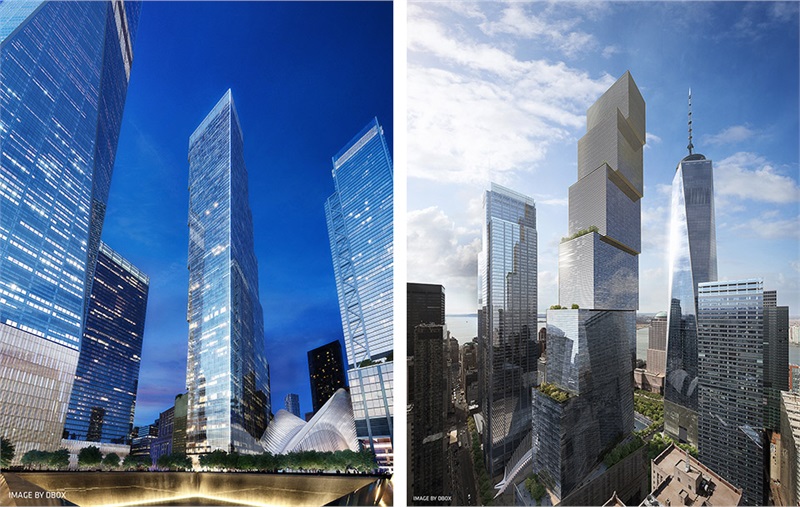

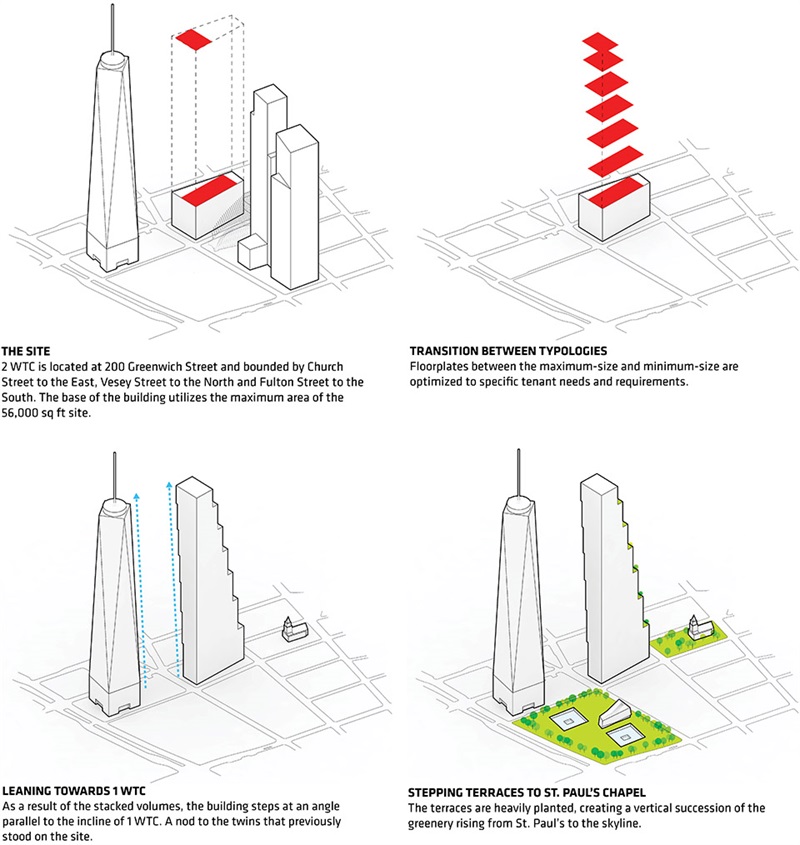

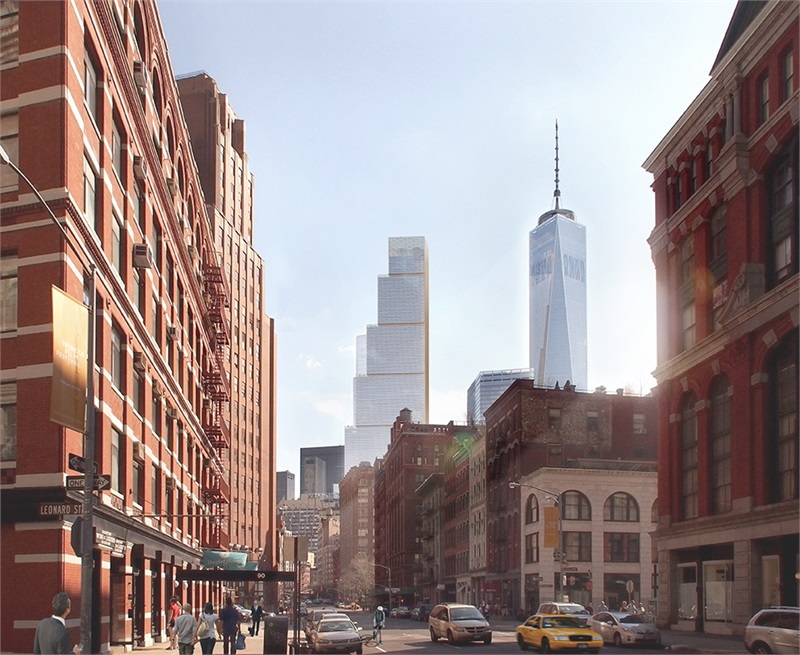

The design of 2 WTC is derived from its urban context at the meeting point between two very different neighborhoods: the Financial District with its modernist skyscrapers and TriBeCa with its lofts and roof gardens. The design combines the unique qualities of each, melding high-rise with low-rise and modern with historical. From the 9/11 Memorial, the building appears as a tall and slender tower just as its three neighboring towers, while the view from TriBeCa is of a series of stepped green terraces. The building is aligned along the axis of World Trade Center Master Planner Daniel Libeskind’s ‘Wedge of Light’ plaza to preserve the views to St. Paul’s Chapel from the Memorial park.

21 Century Fox & News Corp previously said: “21st Century Fox and News Corp h**e reached a non-binding agreement with Silverstein Properties (SPI) to locate each Company’s corporate headquarters at a new building to be developed by SPI at 200 Greenwich Street/2 World Trade Center. The Companies would anchor a state-of-the art tower designed by Bjarke Ingels Group (BIG) to house studios, newsrooms and teams from across both Companies’ businesses. The new headquarters would provide 21st Century Fox and News Corp with a range of efficiencies as well as the flexibility for future growth, while helping cement Lower Manhattan as a dynamic new hub for media.”

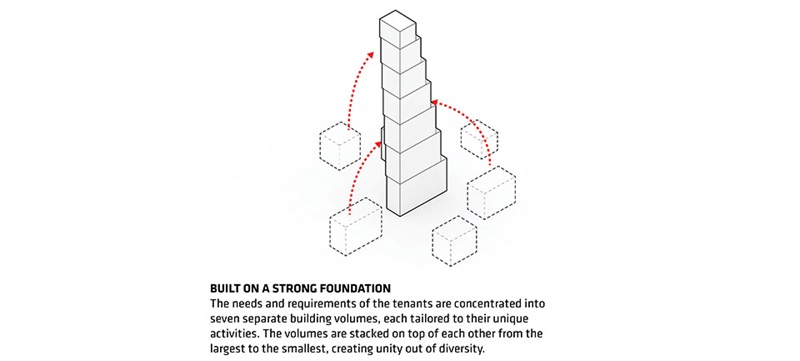

21st Century Fox and News Corp’s new headquarters will occupy the lower half of the tower, while Silverstein Properties will lease the upper half of the tower to other commercial tenants. Their programmatic needs are concentrated into seven separate building volumes, each tailored to their unique activities. The volumes of varying sizes and depths are stacked on top of each other from the largest at the base to the smallest towards the top. The stacking @Creates 38,000 sf (3,530 sm) of outdoor terraces full of lush greenery and unprecedented views of the surrounding cityscape, extending life and social interaction outdoors. The modernist skyscraper and the contemporary interpretation of the pre-modern setback merge in a new hybrid and an exciting addition to the NYC skyline.

“With the transformation of the Financial District into a vibrant neighborhood for creative companies in media, technology and design, 2 WTC addresses the new demands of the contemporary workspace. Floor plates of varying proportions host a multitude of uses and amenities creating different identities stacked in the sky, each with its own park. As the parks step back, the building steps out to transform the flexible work spaces below to typical office spaces above, creating a silhouette towards the 9/11 Memorial Park that matches the reclining lines of ONE WTC.” Thomas Christoffersen, Partner, BIG.

/wp-content/uploads/2015/06/_c_SIR3RyG-VRwddt8aoSfIdCXGb-SKdiLSl1zDlba3pAkYXpjAl5VymhNJraaBZ7gg_6N_yuRQzvaAhDPoOeHd2xa7xKjC99qk.jpg

大楼的底部有电视演播室和9290平方米的各类型零售空间,3530平方米的大堂与交通枢纽直接联系,人们能够直接进入11号线和PATH线,此外底部还有公共广场和32,516平方米的购物中心+餐厅。

这栋大楼将通过开放的工作场所,非正式的会议场所以及内部设施提供一个合作与共享的环境。各种空间和谐的联系在一起:篮球场,跑道,餐厅,放映室等等,另外别忘了还有7个天台花园。

/wp-content/uploads/2015/06/_c_wzP3algRl489_LD5ceW8d92r2WUQXUyVR2Okw5Y01iofDn9mR052S7jHpgX-V8WQ5RG1Mvx4dZqubtK5aCZm-Y0E7Kw-N99x.jpg

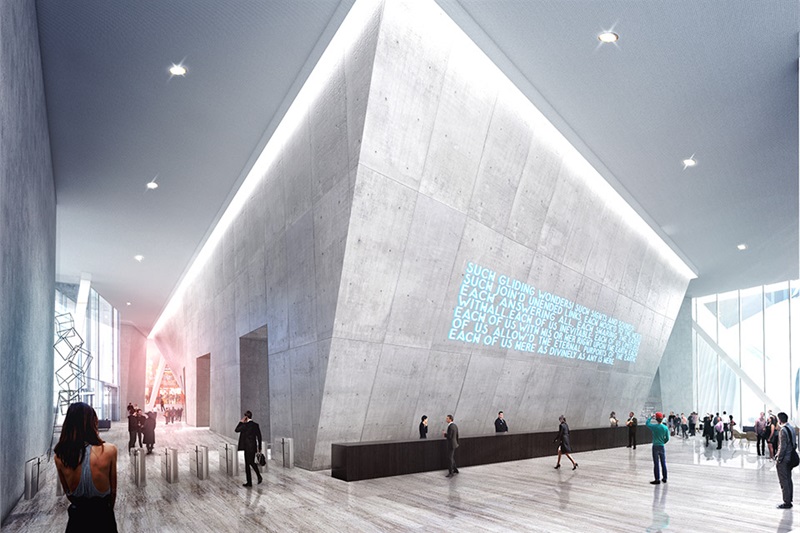

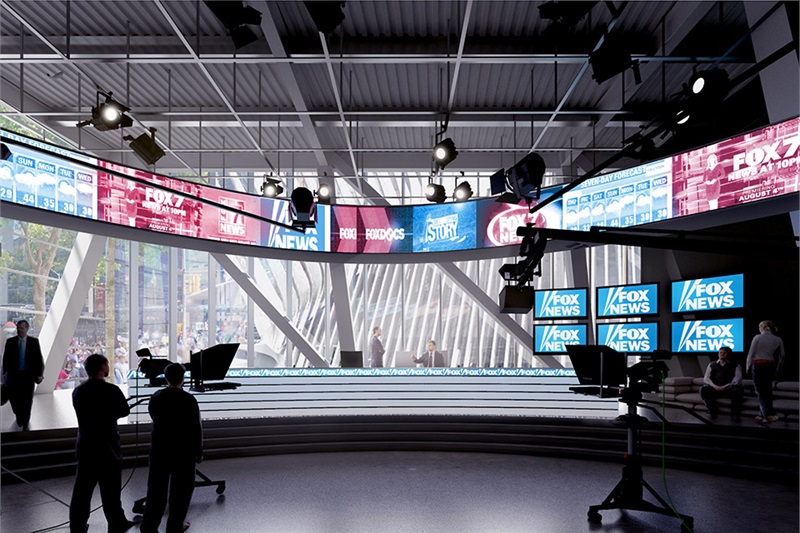

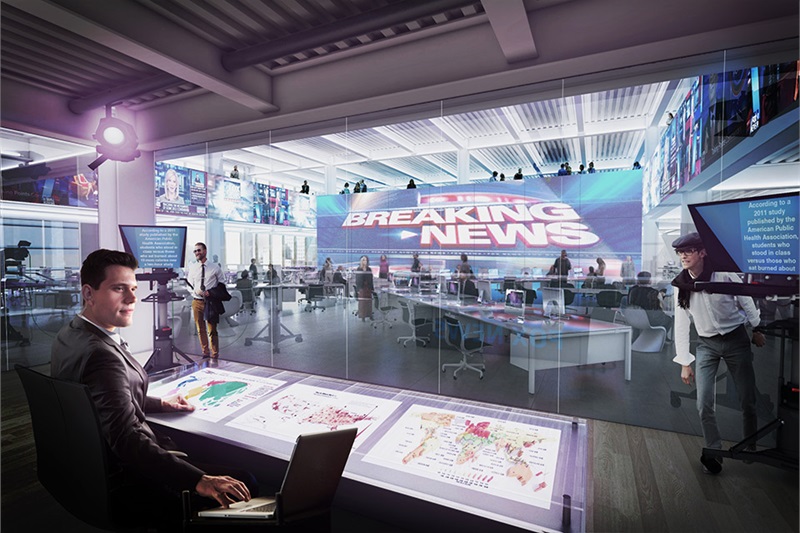

The base of the building utilizes the maximum area of the site, housing TV studios and 100,000 sf (9,290 sm) of retail space over multiple levels. The 38,000 sf (3,530 sm) lobby is connected to the WTC transit hub, providing direct access to 11 subway lines and PATH trains. A public plaza at the foot of the building and access to 350,000 sf (32,516 sm) of shopping and restaurants in the adjacent transportation hub and concourses will ensure life and activity in and around the new World Trade Center.

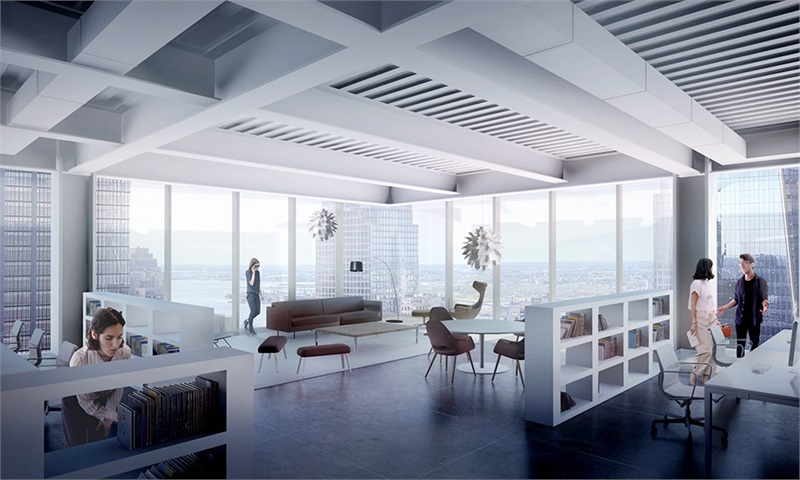

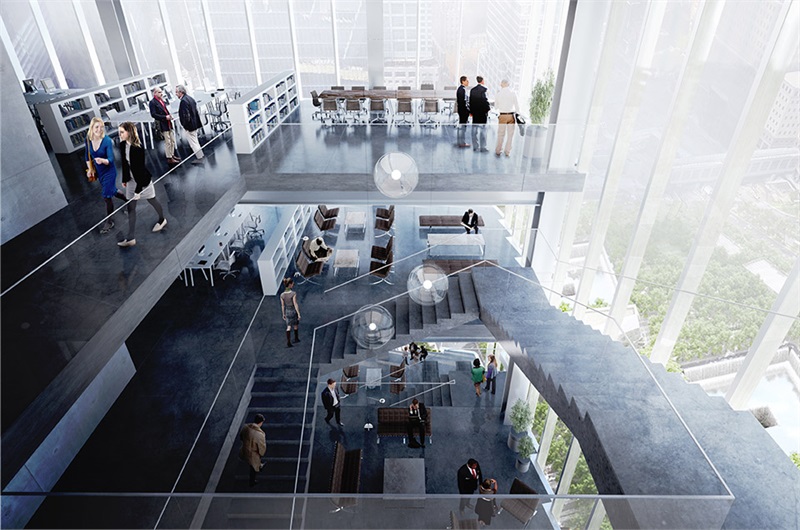

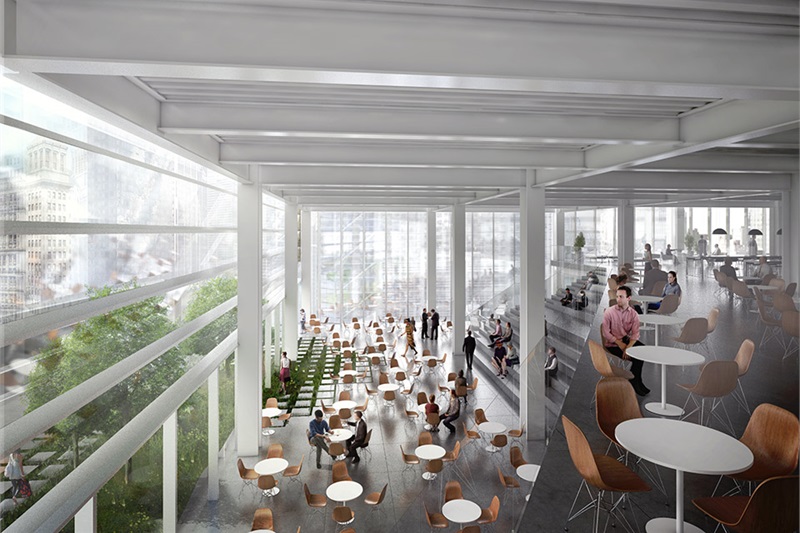

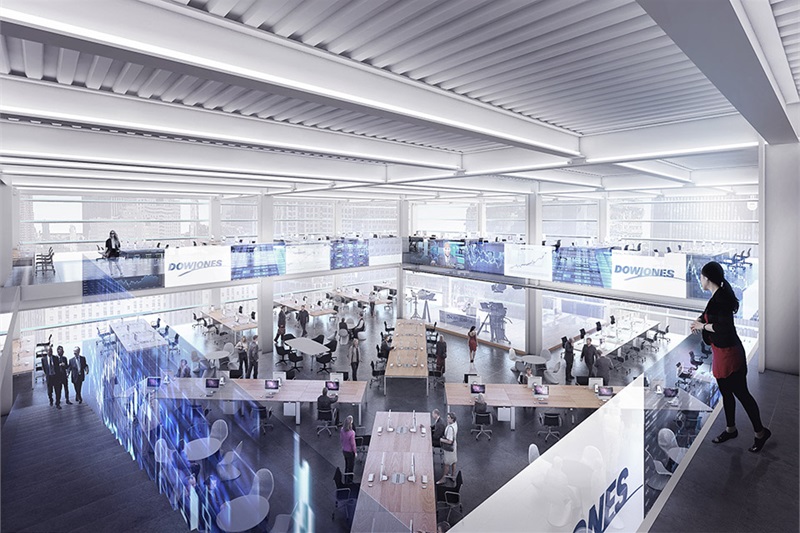

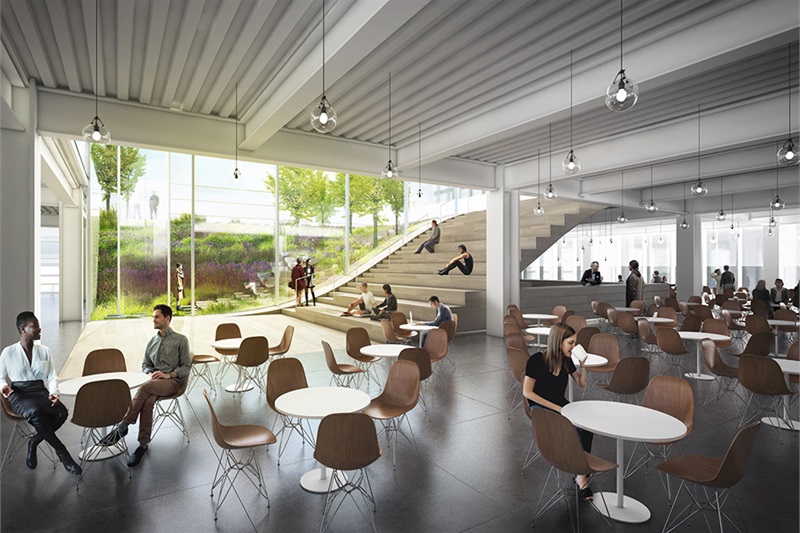

The new building will provide the physical environment for collaboration and idea sharing through the internal mix of open workplaces, amenities and informal meeting spaces. Large stairwells between the floors form cascading double-height communal spaces throughout the headquarters. These continuous spaces enhance connectivity between different departments and amenities, which may include basketball courts, a running track, a cafeteria and screening rooms. The amenity floors are located so that they feed directly out onto the roof top parks.

/wp-content/uploads/2015/06/_c_qBPOpZ181osyFJNhIlg3I9WibGmSGsI3dlpy_w1_1YLcwpZf9UY4hsltWfzXQo0jBEHK8fI_R5wX97DBSK077374IqLnhFDM.jpg

/wp-content/uploads/2015/06/_c_5q5Yx-OWaY3octZLoTcuybH4B4Ad7NBO6tGM3uMpCj8Z4EiEIZUt4SyLvhI12eCdGb6yfdu3MbOEuTAH80oNs7-e23IAx5Do.jpg

/wp-content/uploads/2015/06/_c_EAmFyVR1NTgZfCeG9yzrWzM9zP81fKmN-u4DYkgWNfYFXRlbZqdiM_2yuLR_1oB1w6HndKtOwHW1nZjvkWdRAPRSBJgV_CQs.jpg

/wp-content/uploads/2015/06/_c_7kQlhjFlCC8AtXf1J3hLS_xdKaH8o6v85LjF5-SWfNC94dGG0YYUQpLSfeocWuGSbJpV28tnBmNGGRhHJ0sg3n0KzSREyekF.jpg

/wp-content/uploads/2015/06/_c_LaoBhFRvA-Nv_Qa52R4opeETcPMWU4HMnfTVuRGDInu80e4kQsaXdDMIVs1zmmi8GgmzyRCldPdbXCcTRTNy9azVHEvEpdzG.jpg

/wp-content/uploads/2015/06/_c_xhar8-_eh-MSkWqBdid0Nn0JzcFF-yxli**lsmwdslbAsAo5aCjf42CY0dpvNVwmOaGadYcQ2yXXblVRrtofYqGXb6xl4Hvd.jpg

/wp-content/uploads/2015/06/_c__L4Iu_04AKaZspYzOTYx7LybspKVaJ984wiA5K713QuI6COE7HonzZ3oEUFrmOjX_BA5j3w-T90Lc6PAMD5nN1bsMRU3NVWr.jpg

/wp-content/uploads/2015/06/_c_Lg9ejirOtEPZWPGkGCyyOA8jI1SgjAhCyPS6sj3myUry2VeXfd9eZM8bu0Nr-2yroA0xIQEJMR75OwDRvX825qKmThWnSpGR.jpg

/wp-content/uploads/2015/06/_c_N2uq8oQR5Gef6IA_Y4ufA2XHRdwGBnbARx7Gm26dMfi5i7UotLnJocVZShtOltPQZWw4XDYB5Uq6IPrRWkOqsbWZkkVuvusF.jpg

/wp-content/uploads/2015/06/_c_Q704k_t0MDMlA5j2hiKx6uSJVSYwvHMQ9dLUl575xFkHZXZRu7YiB6bQZdTdnuzvQFUiXaP0REo9lKgU-DeUNrxi94rNjDnF.jpg

/wp-content/uploads/2015/06/_c_mY0QNPIXeKpHwJ9rQKuldRSbygiU4BUxe5jsFf8RLxlVHVp1bH2iXhK0Y3fIXbTGFIowQXCHZe1-iL0R7kYpP9tk3a3jnte4.jpg

BIG的创始人Bjarke Ingels最后告诉gooood:“纽约是一个多文化,多宗教,多种族,多语言,多生活工作习惯的人们组成的大熔炉。而这栋看起来仿佛由多个大楼组成的整栋大楼也与美国的座右铭“合众为一”有异曲同工之妙。”

“More than any other city New York is fueled by the energy and creativity that sparks from people of multiple cultures, religions, races, languages and professions living and working together. The sculptural form of the 2 World Trade Center – composed of many individual buildings forming a single silhouette – appears like an architectural manifestation of the founding motto of this country: “E pluribus unum” – “Out of many, one.”  Bjarke Ingels, Founding Partner, BIG.

/wp-content/uploads/2015/06/_c_sVgUCKrzxJCLqGeM49DhShp0H8RWYHy2xmTFV0j-_h-3FPJUyTXj6xkJTl6oFzr9gkg9GI7dX4vFZ72eibraWRgT1V9Z-KDQ.jpg

/wp-content/uploads/2015/06/_c_AKzEopW-o9wwj2ZaIMvWmrvEA8lSIkzs4ptbXIdVGxqlV-sYjvZw-0qh647qZ-g5bm0ewQAYU8JyjtjBXLcByoehh-IJ-qxN.jpg

/wp-content/uploads/2015/06/_c_KJcMgOgxWmJdqqv0Lng9rbcfMa0FJ0xj0zgI-cv_wOsAOsrFTDG6PnEEbBTs5-oDfB8eJdzMYNyPuaLnW-bO-OzndkkMw_9i.jpg

/wp-content/uploads/2015/06/_c_QIJd5i_3u_DTsfOc6t8VOSR51RXJKwvyC3TNHry1r4jQRtHBX0ot0cTIXLXxWHrSa5IcNte8ICbIBPIRJOakMDgj0pcOBWF0.jpg

/wp-content/uploads/2015/06/_c_s-NChEVwH_UnGgEy0AA**xXU1EiDliVhgWvui-LhETZDjWQr5MusBiLtVGrHO4Mtsz01Gq3W_8R6fv50s4OsMNrXDnzpj8sQ.jpg

PROJECT DATA
Name: 2 WORLD TRADE CENTER
Code: 2WTC
Date: 09/06/2015
Program: Commercial
Status: In Progress
Size in m2: 260000
Project type: Commission
Client: Silverstein Properties & 21st Century Fox / News Corp
Collaborators: Adamson Associates, Jaros, Baum & Bolles, WSP Cantor Seinuk, Van Deusen & Associates, Vidaris, Acoustic Distinctions, Gensler, Gardiner & Theobald, AMA, DBOX, Squint/Opera, Radii
Location Text: 200 Greenwich Street, NYC, USA
Location: (40.7125,-74.0104)
PROJECT TEAM
Partners in Charge: Bjarke Ingels, Thomas Christoffersen
Project Manager: Ute Rinnebach
Project Designer : Martin Voelkle
Project Director: Douglass Alligood
Contributors: Amina Blacksher, Armen Menendian, Benson Chien, Cadence Bayley, Daniel Sundlin, Carolien Schippers, Catherine Pabst, Christopher D**id White, Daisy Zhong, D**id Brown, D**id Zhai, Emily Watts, Eva Maria Mikkelsen, Hsiao Rou Huang, Iva Ulam, Jan Leenknegt, Jennifer Kimura, Ji-Young Yoon, Jonathan Rieke, Julie Kaufmann, Linus Sa**edra, Maki Matsubayashi, Manon Otto, Maria Sole Br**o, Otilia Pupezeanu, Paul Manhertz, Rune Hansen, Sabri Farouki, Seo Young Shin, Tammy Teng, Tiago Sa, Thomas Yaher, Yaziel Juarbe
